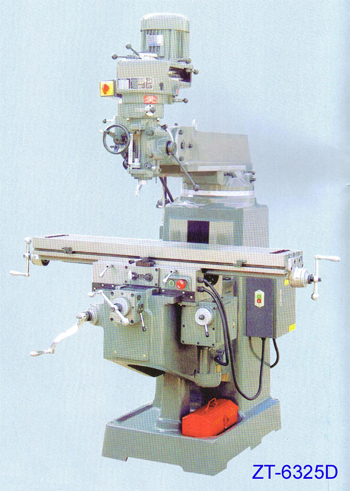

Turret Milling machine ZT-6325D
AddTime:2011/6/10 13:39:09     Hits:357
Turret Milling machine ZT-6325D
ZT Series Turret Milling machine
Parameters
Unit
ZT-3M
ZT-4M
ZT-6325D
ZT-5M
ZT-6M
Working Surface of Table
in
10×50(10×54)
10×50(10×54)
10×50(10×54)
12×54
12×54
Longitudinal Travel(X)
mm
800(900)
800(900)
800(900)
780
800(1000)
Cross Travel (Y)
mm
400
400
400
420
425
Vertical Travel(Z)
mm
380
380
380
400
400
Spindle Travel
mm
127
127
127
132
132
Spindle Bore

R8
R8
R8
NT40
NT40
Spindle Motor
hp
3
3
3
5
5
Distance from Spindle Center to Vertical Guideway
mm
190~685
190~685
190~685
170~720
170~756
Distance from Spindle Nose to table surface
mm
0~428
0~428
0~428
0~530
0~580
Max. Swivel Angle of Milling Head
°
90°(L & R)
45°(F & R)
90°(L & R)
45°(F & R)
90°(L & R)
45°(F & R)
90°(L & R)
0°/ 45°(F & R)
90°(L & R)
0°/45°(F & R)
Ram Travel
mm
550
550
550
570
590
Range of Spindle Speed
rpm
80~5440(16 steps)
80~5440(16 steps)
80~5440(16 steps)
80~2850(10 steps)
80~2850(10 steps)
X Guideway

Dovetail Rail
Dovetail Rail
Dovetail Rail
Dovetail Rail
Dovetail Rail
Y Guideway

Dovetail Rail
Square Rail
Square Rail
Square Rail
Square Rail
Z Guideway

Dovetail Rail
Dovetail Rail
Dovetail Rail
Square Rail
Square Rail
Machine weitht
kgs
1200
1300
1300
1500
1650
