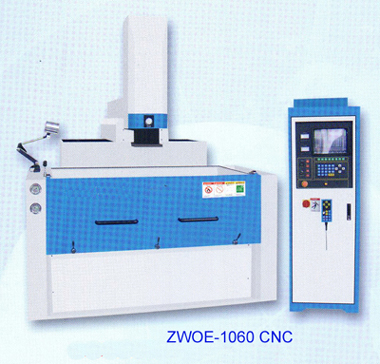

ZWOE SERIES EDM
AddTime:2011/6/9 16:29:33     Hits:297
ZWOE SERIES EDM
ZWOE Series EDM
Parameters
Unit
ZWOE-430
ZWOE-540
ZWOE-640
ZWOE-750
(850)
ZWOE-860
ZWOE-1060
Working table
mm
700×400
750×450
900×600
900×600
1100×700
1100×700
Left-right travel(X)
mm
400
500
600
750/800
850
1000
Front-back travel(Y)
mm
300
400
400
500
500/600
600
Up-down travel(Z)-Main
mm
300
300
350
370
450
500
Distance between table surface and electrode
mm
400-700
400-700
420-770
400-770
500-950
500-1000
Work tank
mm
1150×660×450
1250×750×500
1650×950×550
1850×950×550
1900×1100×600
1900×1100×600
Max. electrode weight
kgs
70
100
130
130
200
300
Max. work-piece weight
kgs
1000
1500
2500
2500
3500
3500
Machine weitht
kgs
2500
2500
3400
3500
5000
5500

Parameters
Unit
ZWOE-1260
ZWOE-1670
ZWOE-2180
Single head
ZWOE-2180
Double head
ZWOE-3012
Double head
Working table
mm
1250×800
1700×1000
2500×1200
2500×1200
3000×1500
Left-right travel(X)
mm
1200
1600
2100
2100
3000
Front-back travel(Y)
mm
600
800
800
800
1200
Up-down travel(Z)-Main
mm
550
550
600
600
800
Distance between table surface and electrode
mm
550-1100
600-1150
700-1300
700-1300
750-1550
Work tank
mm
2000×1300×700
2500×1500×700
3500×1800×700
3500×1800×700
4000×1900×800
Max. electrode weight
kgs
300
400
500
500
600
Max. work-piece weight
kgs
4500
6000
6000
10000
15000
Machine weitht
kgs
6500
9000
16000
18000
46000
