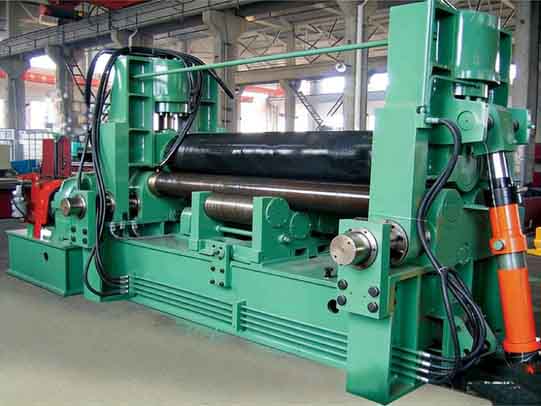

HYDRAULIC PRE-BEND BENDING MACHINE

Precision of the superior products

Unique crooked craft , the high-accuracy tip is curved in advance, the crooked angle after not having in succession, the crooked course is digital control.

Man-machine dialogue controls the high-efficient intelligence of interfaces to operate

Peculiar crooked craft software, the interactive window, the automatic compensation of the crooked course, operate singly, high-efficient and safe and convenient!

Abundant crooked form

Have rolls of form to make O type, U type, many sections of R ,etc. different forms.

Choice of many models According to the use or users enquiry, count and show the model economily, TC numerical control model chooses.

Model	pre-bend thick	Center Bend thick	Bending width (mm)	Top roller Diameter (mm)	Down Roller Diameter (mm)	Center Distance (mm)	Motor For drive (Kw)	Motor  for oil pressure (Kw)	Motor  For moving (Kw)
HPR-6×2000	4.5	6	2000	195	125	160	3	2.2	0.75
HPR-7.5×2000	5.5	7.5	2000	205	125	160	3	2.2	0.75
HPR-8×1500	6	8	1500	175	125	160	3	2.2	0.75
HPR-8×2500	5.7	8	2500	235	135	180	4	2.2	0.75
HPR-8.5×1500	6.5	8.5	1500	185	125	160	3	2.2	0.75
HPR-8.5×2000	6.5	8.5	2000	220	135	180	4	2.2	0.75
HPR-9×2500	6.5	9	2500	245	135	180	4	2.2	0.75
HPR-9.5×3000	7	9.5	3000	275	145	200	5.5	4	0.75
HPR-10×1500	8	10	1500	205	135	180	4	2.2	0.75
HPR-10×2000	7.5	10	2000	235	135	180	4	2.2	0.75
HPR-10.5×2500	8	10.5	2500	255	145	200	5.5	4	0.75
HPR-10.5×3000	8	10.5	3000	280	145	200	5.5	4	0.75
HPR-11×1500	9	11	1500	215	135	180	4	2.2	0.75
HPR-11×2000	9	11	2000	245	145	200	5.5	4	0.75
HPR-11.5×2500	9	11.5	2500	265	145	200	5.5	4	0.75
HPR-12×2000	10	12	2000	250	145	200	5.5	4	0.75
HPR-13×3000	9	13	3000	290	150	245	7.5	4	1.1
HPR-14×2500	10	14	2500	270	150	245	7.5	4	1.1
HPR-15×2000	12	15	2000	255	150	245	7.5	4	1.1
HPR-15×3000	11	15	3000	325	165	270	15	5.5	1.5
HPR-16×2500	13	16	2500	300	165	270	15	5.5	1.5
HPR-18×3500	14	18	3500	390	200	330	18.5	7.5	2.2
HPR-20×2500	16	20	2500	330	180	300	15	5.5	2.2
HPR-20×3000	16	20	3000	375	200	330	18.5	7.5	2.2
HPR-20×3500	16	20	3500	410	220	360	22	7.5	4
HPR-22×2500	18	22	2500	360	200	330	18.5	7.5	2.2
HPR-22×3000	19	22	3000	400	220	360	22	7.5	4
HPR-25×2500	21	25	2500	380	220	360	22	7.5	4
HPR-25×3500	21	25	3500	440	235	380	30	11	4
HPR-25×4000	20	25	4000	490	250	400	30	11	4
HPR-26×4000	22	26	4000	520	260	420	37	15	5.5
HPR-27×3000	22	27	3000	425	235	380	30	11	4
HPR-28×3500	23	28	3500	470	250	400	30	11	4
HPR-30×2500	25	30	2500	410	235	380	30	11	4
HPR-30×3000	25	30	3000	450	250	400	30	11	4
HPR-30×3500	25	30	3500	500	260	420	37	15	5.5
HPR-30×4000	25	30	4000	550	275	460	45	22	5.5
HPR-32×3000	28	32	3000	480	260	420	37	15	5.5
HPR-33×2500	28	33	2500	430	250	400	30	11	4
HPR-32×4000	28	32	4000	580	290	500	55	22	7.5
HPR-32×3500	28	32	3500	530	275	460	45	22	5.5
HPR-35×3000	32	35	3000	510	275	460	45	22	5.5
HPR-36×2500	30	36	2500	460	260	420	37	15	5.5
HPR-36×3500	30	36	3500	560	290	500	55	22	7.5
HPR-38×3000	35	38	3000	540	290	500	55	22	7.5
HPR-40×2500	35	40	2500	500	275	460	45	22	5.5
HPR-40×3200	35	40	3200	560	290	500	55	22	7.5
HPR-43×2500	40	43	2500	520	290	500	55	22	7.5
HPR-45*3000	40	45	3000	590	340	610	55	22	11
HPR-40*4000	35	40	4000	630	340	610	55	22	11
HPR-36*5000	30	36	5000	670	340	610	55	22	15
HPR-32*6000	28	32	6000	700	340	610	55	22	15
HPR-55*3000	45	55	3000	620	360	650	75	30	15
HPR-45*4000	40	45	4000	660	360	650	75	30	15
HPR-40*5000	32	40	5000	700	360	650	75	30	15
HPR-36*6000	30	36	6000	730	360	650	75	30	15
HPR-60*3000	50	60	3000	650	380	700	75	30	15
HPR-50*4000	45	50	4000	700	380	700	75	30	15
HPR-45*5000	38	45	5000	740	380	700	75	30	15
HPR-40*6000	35	40	6000	760	380	700	75	30	15
HPR-70*3000	60	70	3000	710	420	780	75	37	15
HPR-55*4000	50	55	4000	750	420	780	90	37	15
HPR-50*5000	42	50	5000	790	420	780	90	37	15
HPR-45*6000	38	45	6000	820	420	780	90	37	15
HPR-75*3000	65	75	3000	740	440	820	90	37	15
HPR-60*4000	55	60	4000	780	440	820	90	37	15
HPR-55*5000	45	55	5000	820	440	820	90	37	18.5
HPR-50*6000	42	50	6000	850	440	820	90	37	18.5
HPR-80*3000	70	80	3000	770	460	880	90	37	18.5
HPR-65*4000	60	65	4000	810	460	880	90	37	18.5
HPR-60*5000	50	60	5000	850	460	880	90	37	18.5
HPR-55*6000	45	55	6000	890	460	880	90	37	18.5
HPR-85*3000	75	85	3000	800	480	920	110	45	18.5
HPR-70*4000	65	70	4000	840	480	920	110	45	18.5
HPR-65*5000	55	65	5000	890	480	920	110	45	22
HPR-60*6000	50	60	6000	930	480	920	110	45	22
HPR-100*3000	90	100	3000	860	480	920	110	45	22
HPR-80*4000	75	80	4000	900	520	1000	110	45	22
HPR-70*5000	65	70	5000	940	520	1000	110	45	22
HPR-65*6000	60	65	6000	980	520	1000	110	45	22
HPR-115*3000	100	115	3000	900	560	1080	132	55	30
HPR-100*4000	85	100	4000	940	560	1080	132	55	30
HPR-125*3000	110	125	3000	960	600	1120	160	75	37
HPR-110*4000	95	110	4000	990	600	1120	160	75	37
