Applications and features

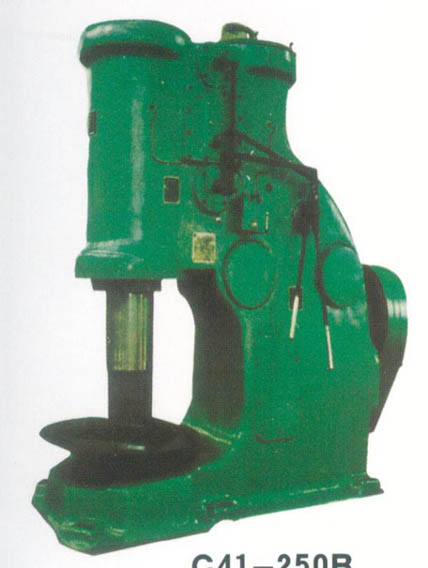

This pneumatic hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forgn in bolster dies.
Ready operation: economic and converient
Easy to operate down, single blow, light or full series blow can be obtained as desired
A special oil-pump is provided for lubricating the cylinders. Prior to running,turn the hand-crank of the pump to get the cyliders being lubricated beforehand.
One piece, two piece designed avaiable.
Pneumatic Hammer Parameters
|
Model |
PH-40 |
PH-65 |
PH-75 |
PH-150 |
PH-200 |
PH-250 |
PH-400B |
PH-750B |
PH-1000B |
|
Rated weight of the tub(kg) |
40 |
65 |
75 |
150 |
200 |
250 |
400 |
750 |
1000 |
|
Max. hit energy(kg) |
0.53 |
0.9 |
1 |
2.2 |
4 |
5.6 |
9.5 |
19 |
27 |
|
Hit Number(min-1) |
245 |
200 |
210 |
180 |
140 |
140 |
120 |
105 |
95 |
|
Height of working area(mm) |
245 |
332 |
325 |
370 |
420 |
450 |
530 |
670 |
800 |
|
Tupaxis to frame front(mm) |
235 |
290 |
280 |
350 |
395 |
420 |
520 |
750 |
800 |
|
Forges
workers |
Square(mm) |
52×52 |
60×60 |
65×65 |
130×130 |
150×150 |
160×160 |
220×220 |
270×270 |
290×290 |
|
Round(mm) |
Ф68 |
Ф75 |
Ф85 |
Ф145 |
Ф170 |
Ф175 |
Ф240 |
Ф300 |
Ф320 |
|
Motor |
Type |
Y112M-4 |
Y160M-6 |
Y160M-6 |
Y1601-4 |
Y200L-6 |
Y180L-4 |
Y200S-4 |
Y280M-6 |
Y315S-6 |
|
Power(kw) |
4 |
7.5 |
7.5 |
15 |
18.5 |
22 |
30 |
55 |
75 |
|
Weight |
Hammer(kg) |
820 |
1900 |
1950 |
3260 |
3800 |
5000 |
8000 |
17000 |
20000 |
|
Anvil block(kg) |
460 |
1000 |
1000 |
1800 |
2900 |
3000 |
4800 |
9000 |
13000 |
Notice：
*The pictures and parameters giving here are just for reference,the manufacturer reserve the right to modify without prior notice.
|
