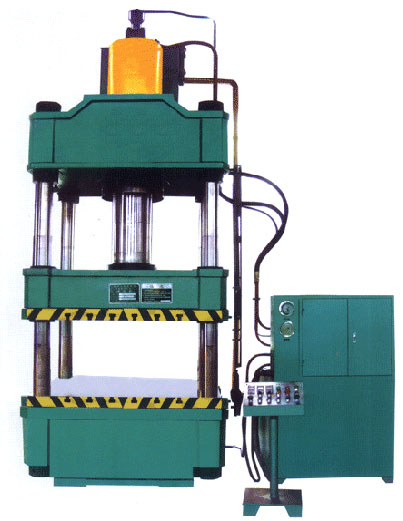

This series Hydraulic Press is computer-optimized design,3-beam,4-column structure,simple but with high performance price ratio. It have Relay Control and PLC control system,centralized button control.Adjustment, manual operation and semi-automatic operation are provided respectively for your choice.Through control panel, it can fixed stroke forming process and fixed pressure forming process.

It is widly used for: 1.drawing,bending,flanging,cool extruding,press blanking process for metal materials;2.straightening and press fitting and pressing forming for powder and abrasive products; 3.press forming process for plastic products and insulation materials.

Parameters		Unit	THP32 -40	THP32 -63	THP32 -100	THP32 -100A	THP32 -160	THP32 -200	THP32 -315	THP32 -400	THP32 -500	THP32 -500C	THP32 -630	THP32 -800	THP32 -1000	THP32 -1250	THP32 -1600	THP32 -2000
Rated Pressure		KN	400	630	1000	1000	1600	2000	3150	4000	5000	5000	6300	8000	10000	12500	16000	20000
Knockout Pressure		KN	120	190	190	190	240	400	630	630	1000	1000	1000	1600	2000	2000	2000	2500
Max.hydraulic pressure		Mpa	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25	30
Stroke of Slide		mm	450	500	600	600	700	700	800	800	900	900	900	900	900	900	900	900
Stroke of Knockout		mm	150	200	200	200	200	250	300	300	350	350	350	350	400	400	400	450
Max. Daylight		mm	700	800	900	900	1050	1100	1250	1300	1500	1500	1600	1600	1600	1600	1600	2000
Speed of Slide	Descent	mm/s	40	100	22	180	120	100	100	100	100	100	100	80	80	80	80	80
	Pressing	mm/s	15	20	14	14	10	12	5	4	10	10	6	8	10	6-10	6-10	6-10
	Return	mm/s	50	60	47	60	60	52	60	60	60	60	50	50	50	45	50	40
Table Area	L-R	mm	500	560	680	500	1000	1000	1200	1200	1400	2370	1500	1500	1600	1700	2000	2500
Table Area	F-B	mm	460	500	580	460	800	900	1200	1200	1400	1450	1500	1600	1600	1600	1600	1600
Overall dimension	L-R	mm	2000	2400	2500	2000	2700	2825	3235	3235	4060	6500	4200	4800	5250	5250	5800	8000
	F-B	mm	1300	1400	1500	1300	1700	2060	2200	2200	3525	3800	4200	4000	3800	3800	4000	5200
	Height above ground	mm	2600	3100	2950	2600	3400	3725	4295	4500	4995	4740	5600	6000	5800	6000	6200	6800
Total Motor Power		kw	4	7.5	7.5	4	7.5	15	22	22	45	45	45	60	75.5	75.5	75.5	86.5

Notice:

* The pictures and parameters giving here are just for reference,the manufacturer reserve the right fo modify without prior notic.
