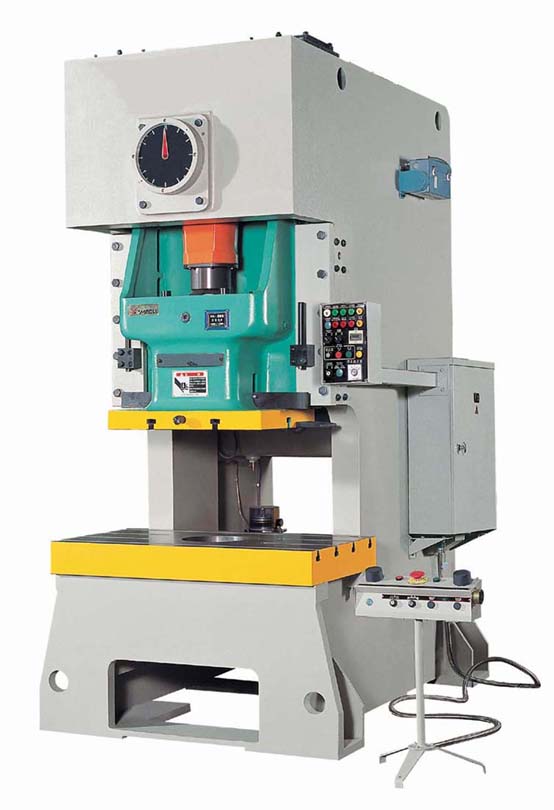

The press is welded by steel plate, so it is in good rigidity and stable precision.
It is used Combined dry-type pneumatic friction clutch, so the engagement is smooth, the action is agile and the noise is low.
The gear pair adopts the flooding system lubrication.
The slide block is six-face rectangle with longer guide track whose face is bronze paned, so the guide precision is good.
It adopts Shearing Block protector, so it is reliable.
The control system is the international brand PLC control.
This machine has a safe double-linkage magnetic valve
Up-lift type balancing cylinder device is equipped in this machine.
Main motor adopts Siemens motor.
This machine is equipped with electric moulding-adjustment, digital display.
|
Model |
AP-25 |
AP-45 |
AP-60 |
AP-80 |
AP-110 |
AP-150 |
AP-200 |
|
Nominal pressureKN |
250 |
450 |
600 |
800 |
1100 |
1500 |
2000 |
|
Nominal pressure stroke mm |
2.8 |
3.2 |
4 |
4.5 |
5 |
6 |
6 |
|
stroke of slide mm |
80 |
120 |
140 |
160 |
180 |
200 |
250 |
|
single stroke per min s.p.m |
90 |
80 |
70 |
60 |
60 |
50 |
40 |
|
variable stroke per min s.p.m |
70-100 |
60-90 |
50-80 |
40-75 |
55-70 |
30-55 |
25-45 |
|
Max die-seeting height mm |
250 |
270 |
300 |
320 |
350 |
400 |
450 |
|
die height adjustment mm |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
|
depth of throat mm |
210 |
225 |
270 |
290 |
350 |
390 |
430 |
|
size of bolster mm |
L to R |
700 |
810 |
870 |
1000 |
1070 |
1170 |
1390 |
|
F to B |
400 |
440 |
520 |
560 |
680 |
760 |
840 |
|
size of open in bed mm |
φ100 |
φ150 |
φ150 |
φ150 |
φ160 |
φ180 |
φ200 |
|
thickness of bolster mm |
85 |
110 |
130 |
130 |
160 |
165 |
200 |
|
distance between column mm |
450 |
500 |
560 |
650 |
680 |
720 |
900 |
|
bottom size of slide mm |
L to R |
360 |
410 |
480 |
560 |
620 |
700 |
880 |
|
F to B |
250 |
340 |
400 |
430 |
520 |
580 |
650 |
|
hole for punch shank mm |
die |
φ40 |
φ50 |
φ50 |
φ60 |
φ70 |
φ70 |
φ70 |
|
depth |
60 |
60 |
60 |
80 |
80 |
100 |
100 |
|
single speed motor power KW |
3 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
15 |
|
variable motor power KW |
3 |
5．5 |
7．5 |
7．5 |
11 |
15 |
22 |
|
overall dimensions mm |
L |
1350 |
1440 |
1615 |
1915 |
2200 |
2355 |
2690 |
|
W |
950 |
1080 |
1200 |
1385 |
1370 |
1815 |
1630 |
|
H |
2160 |
2300 |
2570 |
2820 |
3190 |
3250 |
3810 |
|
total weight Kg |
2300 |
3400 |
5000 |
7500 |
9000 |
15000 |
20000 |
|
|
|
|
|
|
|
|
|
|
|
|
