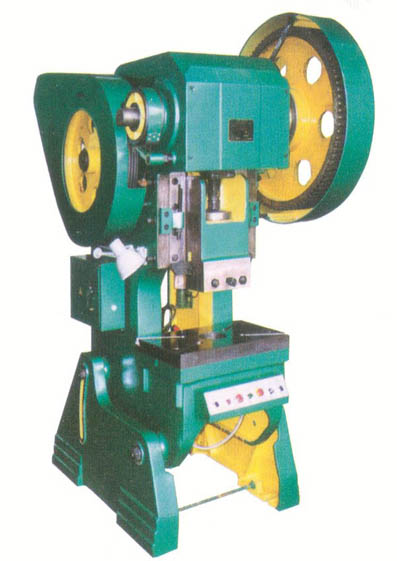

OP Mechanic press
The machine is open type, and the machine body can inclinable.
structure by casting, body tilt, body rigid,
Rigid clutch with turn-button, reliable performance and agility
Crankshaft horizontally, slide rails with V-oriented, high precision
The machine is widely used in punching spare parts of electric motor, traffic vehicle, electric elements, clock an watch,hardware tools.
Slide stroke can be adjusted as your specially order!
|
Specifications |
Unit |
OP-3.15 |
OP-6.3 |
OP-10 |
OP-16 |
OP-25 |
OP-40 |
OP-63 |
OP-80 |
|
|
KN |
31.5 |
63 |
100 |
160 |
250 |
400 |
630 |
800 |
|
Slide stroke |
mm |
25 |
35 |
45 |
55 |
65 |
80 |
100 |
120 |
|
stroke |
min-1 |
200 |
170 |
145 |
120 |
55 |
45 |
40 |
40 |
|
Max. die set height |
mm |
90 |
120 |
100 |
180 |
200 |
265 |
310 |
300 |
|
Die set height adjustment |
mm |
25 |
30 |
35 |
45 |
55 |
65 |
80 |
80 |
|
Distance from slide block centre to the frame |
mm |
90 |
110 |
130 |
160 |
200 |
250 |
310 |
310 |
|
Worktable dimen-sions |
Front to back |
mm |
160 |
200 |
240 |
300 |
366 |
440 |
570 |
570 |
|
Right to left |
mm |
250 |
310 |
370 |
450 |
560 |
685 |
860 |
860 |
|
Dimensions of slide block bottom surface |
Front to back |
mm |
90 |
120 |
150 |
180 |
210 |
245 |
340 |
340 |
|
Right to left |
mm |
100 |
140 |
170 |
200 |
250 |
300 |
400 |
400 |
|
Size of the handle hole |
Diameter |
mm |
25 |
25 |
30 |
40 |
40 |
50 |
50 |
50 |
|
Depth |
mm |
40 |
55 |
55 |
60 |
70 |
70 |
80 |
80 |
|
Inclinable Angle of body |
|
45 |
45 |
35 |
35 |
30 |
30 |
30 |
30 |
|
Motor |
Type |
|
Y180L-4 |
Y90L-6 |
Y90L-6 |
Y100L-6 |
Y100L-4 |
Y132S-4 |
Y132M-4 |
Y132M-4 |
|
Power |
KW |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
5.5 |
7.5 |
7.5 |
|
Overall dimension |
Long |
mm |
674 |
730 |
895 |
1130 |
1345 |
1685 |
1940 |
1940 |
|
Wide |
mm |
489 |
550 |
713 |
834 |
1150 |
1325 |
1502 |
1502 |
|
High |
mm |
1323 |
1503 |
1653 |
1890 |
2130 |
2470 |
2870 |
2870 | |
