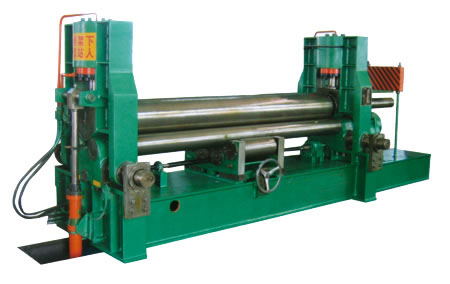

HYDRAULIC PRE-BEND BENDING MACHINE
The machine is of hydralic type and the machine can pre-bend the plate's end.
Precision of the superior products
Unique crooked craft , the high-accuracy tip is curved in advance, the crooked angle after not having in succession, the crooked course is digital control.
Man-machine dialogue controls the high-efficient intelligence of interfaces to operate
Peculiar crooked craft software, the interactive window, the automatic compensation of the crooked course, operate singly, high-efficient and safe and convenient!
Abundant crooked form
Have rolls of form to make O type, U type, many sections of R ,etc. different forms.
Choice of many models According to the use or users enquiry, count and show the model economily, TC numerical control model chooses.
|
Model |
pre-bend
thick |
Center
Bend
thick |
Bending
width
(mm) |
Top
roller
Diameter
(mm) |
Down
Roller
Diameter
(mm) |
Center
Distance
(mm) |
Motor
For
drive
(Kw) |
Motor
for oil
pressure
(Kw) |
Motor
For
moving
(Kw) |
|
HPR-6×2000 |
4.5 |
6 |
2000 |
195 |
125 |
160 |
3 |
2.2 |
0.75 |
|
HPR-7.5×2000 |
5.5 |
7.5 |
2000 |
205 |
125 |
160 |
3 |
2.2 |
0.75 |
|
HPR-8×1500 |
6 |
8 |
1500 |
175 |
125 |
160 |
3 |
2.2 |
0.75 |
|
HPR-8×2500 |
5.7 |
8 |
2500 |
235 |
135 |
180 |
4 |
2.2 |
0.75 |
|
HPR-8.5×1500 |
6.5 |
8.5 |
1500 |
185 |
125 |
160 |
3 |
2.2 |
0.75 |
|
HPR-8.5×2000 |
6.5 |
8.5 |
2000 |
220 |
135 |
180 |
4 |
2.2 |
0.75 |
|
HPR-9×2500 |
6.5 |
9 |
2500 |
245 |
135 |
180 |
4 |
2.2 |
0.75 |
|
HPR-9.5×3000 |
7 |
9.5 |
3000 |
275 |
145 |
200 |
5.5 |
4 |
0.75 |
|
HPR-10×1500 |
8 |
10 |
1500 |
205 |
135 |
180 |
4 |
2.2 |
0.75 |
|
HPR-10×2000 |
7.5 |
10 |
2000 |
235 |
135 |
180 |
4 |
2.2 |
0.75 |
|
HPR-10.5×2500 |
8 |
10.5 |
2500 |
255 |
145 |
200 |
5.5 |
4 |
0.75 |
|
HPR-10.5×3000 |
8 |
10.5 |
3000 |
280 |
145 |
200 |
5.5 |
4 |
0.75 |
|
HPR-11×1500 |
9 |
11 |
1500 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
|
HPR-11×2000 |
9 |
11 |
2000 |
245 |
145 |
200 |
5.5 |
4 |
0.75 |
|
HPR-11.5×2500 |
9 |
11.5 |
2500 |
265 |
145 |
200 |
5.5 |
4 |
0.75 |
|
HPR-12×2000 |
10 |
12 |
2000 |
250 |
145 |
200 |
5.5 |
4 |
0.75 |
|
HPR-13×3000 |
9 |
13 |
3000 |
290 |
150 |
245 |
7.5 |
4 |
1.1 |
|
HPR-14×2500 |
10 |
14 |
2500 |
270 |
150 |
245 |
7.5 |
4 |
1.1 |
|
HPR-15×2000 |
12 |
15 |
2000 |
255 |
150 |
245 |
7.5 |
4 |
1.1 |
|
HPR-15×3000 |
11 |
15 |
3000 |
325 |
165 |
270 |
15 |
5.5 |
1.5 |
|
HPR-16×2500 |
13 |
16 |
2500 |
300 |
165 |
270 |
15 |
5.5 |
1.5 |
|
HPR-18×3500 |
14 |
18 |
3500 |
390 |
200 |
330 |
18.5 |
7.5 |
2.2 |
|
HPR-20×2500 |
16 |
20 |
2500 |
330 |
180 |
300 |
15 |
5.5 |
2.2 |
|
HPR-20×3000 |
16 |
20 |
3000 |
375 |
200 |
330 |
18.5 |
7.5 |
2.2 |
|
HPR-20×3500 |
16 |
20 |
3500 |
410 |
220 |
360 |
22 |
7.5 |
4 |
|
HPR-22×2500 |
18 |
22 |
2500 |
360 |
200 |
330 |
18.5 |
7.5 |
2.2 |
|
HPR-22×3000 |
19 |
22 |
3000 |
400 |
220 |
360 |
22 |
7.5 |
4 |
|
HPR-25×2500 |
21 |
25 |
2500 |
380 |
220 |
360 |
22 |
7.5 |
4 |
|
HPR-25×3500 |
21 |
25 |
3500 |
440 |
235 |
380 |
30 |
11 |
4 |
|
HPR-25×4000 |
20 |
25 |
4000 |
490 |
250 |
400 |
30 |
11 |
4 |
|
HPR-26×4000 |
22 |
26 |
4000 |
520 |
260 |
420 |
37 |
15 |
5.5 |
|
HPR-27×3000 |
22 |
27 |
3000 |
425 |
235 |
380 |
30 |
11 |
4 |
|
HPR-28×3500 |
23 |
28 |
3500 |
470 |
250 |
400 |
30 |
11 |
4 |
|
HPR-30×2500 |
25 |
30 |
2500 |
410 |
235 |
380 |
30 |
11 |
4 | |
