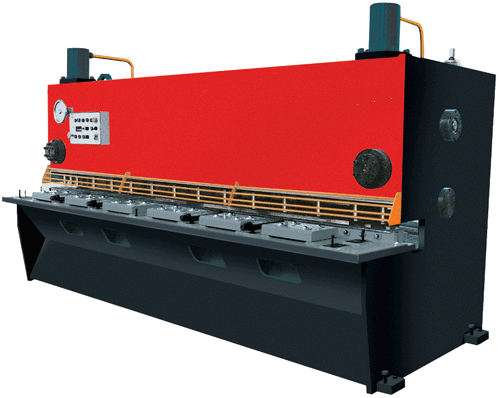

Hydraulic guillotine
The machine is used for cutting the steel plate. And the cutting angle can be adjusted.
All steel welded structure, consolidated treatment for removal of internal stress (vibrating aging, heat), with good rigidity and stability.
Integrated hydraulic gransmission system, with good reliability.
Triple support rolling guide rail to elimitnate gaps of support and enhance shearing quality.
Mechanical rear stopper with manual fine tuning, and digital indication.
Clearance in between cutting blades adjusted by hand wheel to be quick, accrate and convenient.
Rectangular blades with four cutting edges to prolong working life,adjustable cutting angle to reduce deformation of the sheet.
Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece.
Function of shearing in sections, function of aligning with light.
Optional: rear material holding device (or for other choice).
THE MACHINE HAVE DRO TYPE,NC TYPE AND CNC TYPE FOR YOUR CHOICE.
|
Modles |
Cutting
Thick
mm |
cutting
length
(mm) |
Stroke /
minute |
Back
gauge
range (mm) |
Cutting
angle
adjust(°) |
machine
throat (mm) |
(kw) |
|
HG-6x2500 |
6 |
2500 |
10-45 |
750 |
0.5-2.5 |
70 |
7.5 |
|
HG-6x3100 |
6 |
3100 |
8-45 |
750 |
0.5-2.5 |
70 |
7.5 |
|
HG-6x4000 |
6 |
4000 |
7-45 |
750 |
0.5-2.5 |
70 |
7.5 |
|
HG-6x6000 |
6 |
6000 |
5-30 |
750 |
0.5-2.5 |
100 |
15 |
|
HG-8x2500 |
8 |
2500 |
10-45 |
750 |
0.5-2.5 |
100 |
11 |
|
HG-8x3100 |
8 |
3100 |
8-45 |
750 |
0.5-2.5 |
100 |
11 |
|
HG-8x4000 |
8 |
4000 |
7-45 |
750 |
0.5-2.5 |
100 |
11 |
|
HG-8x6000 |
8 |
6000 |
5-30 |
750 |
0.5-2.5 |
100 |
22 |
|
HG-10x2500 |
10 |
2500 |
10-35 |
750 |
0.5-2.5 |
100 |
11 |
|
HG-10x3100 |
10 |
3100 |
8-35 |
750 |
0.5-2.5 |
100 |
11 |
|
HG-10x4000 |
10 |
4000 |
6-35 |
750 |
0.5-2.5 |
100 |
11 |
|
HG-12x2500 |
12 |
2500 |
10-35 |
1000 |
0.5-2.5 |
100 |
15 |
|
HG-12x3100 |
12 |
3100 |
8-35 |
1000 |
0.5-2.5 |
100 |
15 |
|
HG-12x4000 |
12 |
4000 |
6-35 |
1000 |
0.5-2.5 |
100 |
15 |
|
HG-12x6000 |
12 |
6000 |
4-12 |
1000 |
0.5-2.5 |
100 |
30 |
|
HG-14x6000 |
14 |
6000 |
4-12 |
1000 |
0.5-2.5 |
100 |
30 |
|
HG-16x2500 |
16 |
2500 |
8-30 |
1000 |
0.5-3.0 |
100 |
30 |
|
HG-16x3100 |
16 |
3100 |
7-30 |
1000 |
0.5-3.0 |
100 |
30 |
|
HG-16x4000 |
16 |
4000 |
6-30 |
1000 |
0.5-3.0 |
100 |
30 |
|
HG-16x6000 |
16 |
6000 |
4-12 |
1000 |
0.5-2.5 |
100 |
37 |
|
HG-20x2500 |
20 |
2500 |
8-30 |
1000 |
0.5-3.5 |
100 |
30 |
|
HG-20x3100 |
20 |
3100 |
7-30 |
1000 |
0.5-3.5 |
100 |
30 |
|
HG-20x4000 |
20 |
4000 |
6-30 |
1000 |
0.5-3.5 |
100 |
30 |
|
HG-20x6000 |
20 |
6000 |
3-10 |
1000 |
0.5-2.5 |
100 |
60 | |
