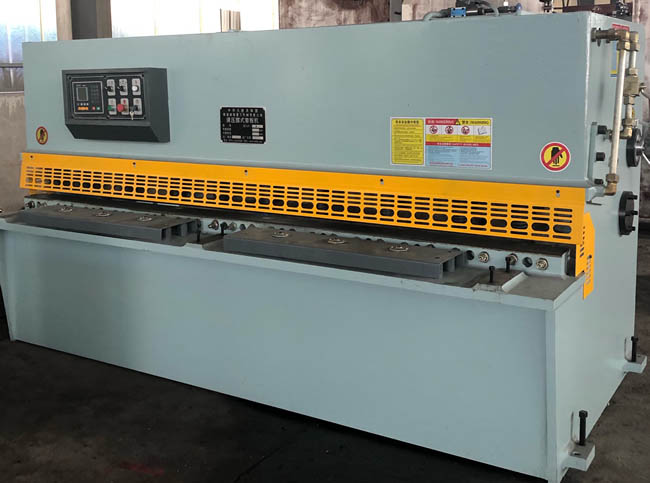

Hydraulic cutting machine
The machine is used to cut the steel plate.
This machine adopts hydraulic driving and swing tool carrier, the structure is convenient to operate and maintain. the characteristic of it is that it has complete functions mechanical back gauge manually operated trimming and numberical value display structure it also has blade cleaance "Quick set" device, line on the plate and counter, stoke steppless controller rai working efficiency shearing narrow plate, this machine is suitable for motal constructions works bollar plants noising and transpoot machinery factories as well as shipyards to cut dividing plates or to finish crude edges of the plate materials.
THE MACHINE HAVE DRO TYPE,NC TYPE AND CNC TYPE FOR YOUR CHOICE.
|
Model |
Cutting
Thickness (mm) |
cutting Width (mm) |
cutting Angle |
Number stroke (mm) |
Backaua Range (mm) |
Motor Power (KW) |
|
HC-4 x 2000 |
4 |
2000 |
1°30” |
17 |
20-600 |
5.5 |
|
HC-4 x 2500 |
4 |
2500 |
1°30” |
17 |
20-600 |
5.5 |
|
HC-4 x 3200 |
4 |
3200 |
1°30” |
17 |
20-600 |
7.5 |
|
HC-6 x 2500 |
6 |
2500 |
1°30” |
17 |
20-600 |
7.5 |
|
HC-6 x 3200 |
6 |
3200 |
1°30” |
17 |
20-600 |
7.5 |
|
HC-6 x 4000 |
6 |
4000 |
1°12” |
17 |
20-600 |
7.5 |
|
HC-8 x 2500 |
8 |
2500 |
1°30” |
17 |
20-600 |
7.5 |
|
HC-8 x 3200 |
8 |
3200 |
2°30” |
17 |
20-600 |
7.5 |
|
HC-8 x 4000 |
8 |
4000 |
1°12” |
17 |
20-600 |
7.5 |
|
HC-10 x 2500 |
10 |
2500 |
1°30” |
9 |
20-600 |
15 |
|
HC-10 x 3200 |
10 |
3200 |
1°30” |
9 |
20-600 |
15 |
|
HC-12 x 2500 |
12 |
2500 |
1°30” |
8 |
20-600 |
22 |
|
HC-12 x 3200 |
12 |
3200 |
1°30” |
8 |
20-500 |
22 |
|
HC-16 x 2500 |
16 |
2500 |
2°30” |
8 |
20-500 |
22 |
|
HC-16 x 3200 |
16 |
3200 |
2°30” |
8 |
20-500 |
22 |
|
HC-20 x 2500 |
20 |
2500 |
2°30” |
8 |
20-500 |
30 |
|
HC-20 x 3200 |
20 |
3200 |
2°30” |
7 |
20-500 |
30 |
|
HC-12 x 4000 |
12 |
4000 |
1°40” |
9 |
20-600 |
22 |
|
HC-16 x 4000 |
16 |
4000 |
2°30” |
9 |
20-700 |
30 |
|
HC-20 x 4000 |
20 |
4000 |
2°30” |
5 |
20-700 |
45 | |
