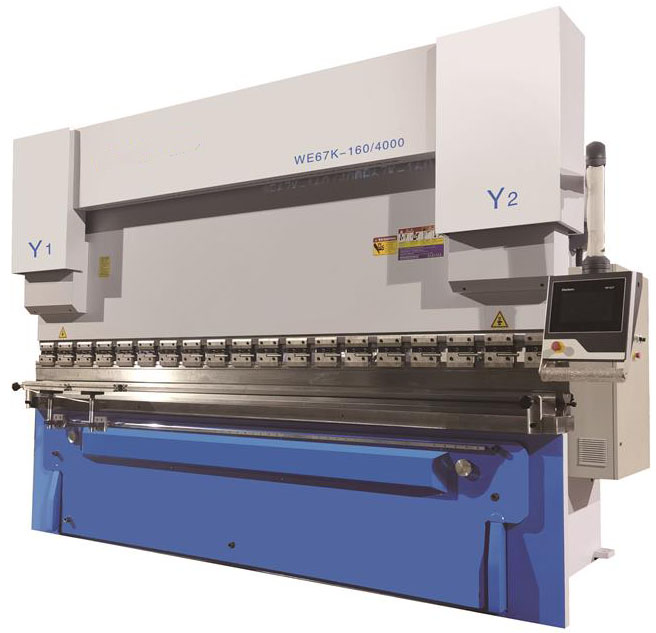

HBS CNC BENDING MACHINE WITH DELEM DA41
SPECIFICATION AND FEATURE:
All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
Torsion bar forced synchronization of mechanical limit stopper balance, with high precision.
Integrated hydraulic transmission system, large range of speed regulation thanks to transmission of thesliding block, stable and reliable performance.
Rear stopper and the sliding block have electrical adjustment for their stroke, with manual fine tuning, and digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with tilting warp offset mechanism.
For bending machine from 250 t up synchronization mechanism of mechanical or electrical hydraulic transmission is fitted, lower working table is fitted with warp offset mechnaism.
Multi machine combined operation is possible.
The machine can with DRO,Such as ESTUN E10,NC system,such as ESTUN E200,CNC,such as: DELEM DA41,DA51,etc.
|
Models
HBS |
Pessing force (KN) |
Work length (mm) |
Dist between housings (mm)
|
Depth of throat (mm) |
Ram
Stroke (mm) |
Ram
adjust
mm |
Dest between table & ram (mm) |
Motor power
(kw) |
|
25/1600 |
250 |
1600 |
1190 |
200 |
100 |
70 |
300 |
3 |
|
25/2000 |
250 |
2000 |
1590 |
200 |
100 |
70 |
300 |
3 |
|
25/2500 |
250 |
2500 |
2090 |
200 |
100 |
70 |
300 |
3 |
|
40/2000 |
400 |
2000 |
1615 |
200 |
100 |
70 |
340 |
4 |
|
40/2500 |
400 |
2500 |
2090 |
200 |
100 |
70 |
300 |
5.5 |
|
50/2500 |
500 |
2500 |
2090 |
250 |
100 |
70 |
300 |
5.5 |
|
50/3200 |
500 |
3200 |
2600 |
250 |
100 |
70 |
300 |
5.5 |
|
63/2500 |
630 |
2500 |
2020 |
250 |
100 |
70 |
335 |
5.5 |
|
63/3200 |
630 |
3200 |
2600 |
250 |
100 |
70 |
350 |
5.5 |
|
80/2500 |
800 |
2500 |
2015 |
250 |
100 |
70 |
350 |
5.5 |
|
80/3200 |
800 |
3200 |
2565 |
250 |
100 |
70 |
350 |
5.5 |
|
100/3200 |
1000 |
3200 |
2555 |
320 |
130 |
85 |
380 |
7.5 |
|
100/4000 |
1000 |
4000 |
3105 |
320 |
130 |
85 |
380 |
7.5 |
|
125/3200 |
1250 |
3200 |
2550 |
320 |
130 |
85 |
380 |
7.5 |
|
125/4000 |
1250 |
4000 |
3100 |
320 |
130 |
85 |
380 |
7.5 |
|
160/3200 |
1600 |
3200 |
2550 |
320 |
150 |
110 |
400 |
11 |
|
160/4000 |
1600 |
4000 |
3100 |
320 |
150 |
110 |
400 |
11 |
|
200/3200 |
2000 |
3200 |
2250 |
320 |
200 |
110 |
435 |
15 |
|
200/4000 |
2000 |
4000 |
3140 |
320 |
200 |
110 |
460 |
15 |
|
250/3200 |
2500 |
3200 |
2430 |
400 |
250 |
120 |
460 |
15 |
|
250/4000 |
2500 |
4000 |
3120 |
400 |
250 |
120 |
460 |
15 |
|
250/5000 |
2500 |
5000 |
3800 |
400 |
250 |
150 |
460 |
15 |
|
300/5000 |
3000 |
5000 |
3820 |
400 |
250 |
110 |
560 |
15 |
|
400/4000 |
4000 |
4000 |
3110 |
400 |
250 |
110 |
630 |
30 |
|
500/3200 |
5000 |
3200 |
2300 |
400 |
250 |
120 |
630 |
30 |
