Air Hammer
AddTime:2011/9/22 14:34:22     Hits:271

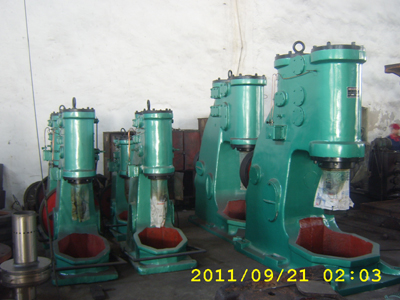

Air Hammer

Applications and features
This pneumatic hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forgn in bolster dies.
Ready operation: economic and converient
Easy to operate down, single blow, light or full series blow can be obtained as desired
A special oil-pump is provided for lubricating the cylinders. Prior to running,turn the hand-crank of the pump to get the cyliders being lubricated beforehand.
One piece, two piece designed avaiable.


Pneumatic Hammer Parameters
Model
PH-40
PH-65
PH-75
PH-150
PH-200
PH-250
PH-400B
PH-750B
PH-1000B
Rated weight of the tub(kg)
40
65
75
150
200
250
400
750
1000
Max. hit energy(kg)
0.53
0.9
1
2.2
4
5.6
9.5
19
27
Hit Number(min-1)
245
200
210
180
140
140
120
105
95
Height of working area(mm)
245
332
325
370
420
450
530
670
800
Tupaxis to frame front(mm)
235
290
280
350
395
420
520
750
800
Forges
workers
Square(mm)
52×52
60×60
65×65
130×130
150×150
160×160
220×220
270×270
290×290
Round(mm)
Ф68
Ф75
Ф85
Ф145
Ф170
Ф175
Ф240
Ф300
Ф320
Motor
Type
Y112M-4
Y160M-6
Y160M-6
Y1601-4
Y200L-6
Y180L-4
Y200S-4
Y280M-6
Y315S-6
Power(kw)
4
7.5
7.5
15
18.5
22
30
55
75
Weight
Hammer(kg)
820
1900
1950
3260
3800
5000
8000
17000
20000
Anvil block(kg)
460
1000
1000
1800
2900
3000
4800
9000
13000
Notice：
*The pictures and parameters giving here are just for reference,the manufacturer reserve the right to modify without prior notice.
