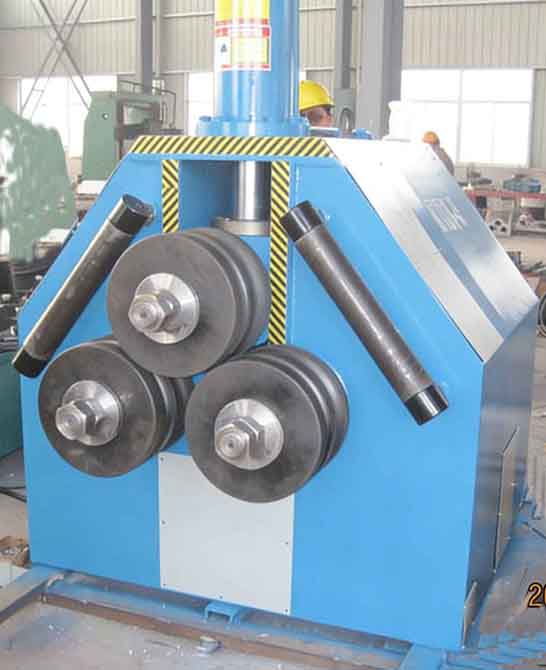

Profile Bending Machine(semi-hydraulic)
AddTime:2011/7/26 16:06:52     Hits:286
Profile Bending Machine(semi-hydraulic)



Technical parameters
Model
6
16
30
45
75
100
Flexural modulus of the largest cross-section profiles
6
16
30
45
75
100
Coil velocity (m / min)
6
5
Profiles yield strength (mpa)
△S=250
   Angle (insde bend)
The largest cross-section (mm)
40×5
70×8
80×8
90×10
100×10
120×12
Minimum bending diameter (mm)
800
1000
1200
1500
2000
2500
Minimum cross-section (mm)
20×3
30×3
35×3
36×5
38×4
40×5
Minimum bending diameter (mm)
400
550
560
600
600
720
Angle (bend)
The largest cross-section (mm)
50×5
80×8
90×10
100×10
120×12
140×16
Minimum bending diameter (mm)
800
1000
1100
1300
1600
1800
Minimum cross-section(mm)
20×3
30×3
35×3
36×5
38×4
45×5
Minimum bending diameter(mm)
400
550
500
600
700
760
Channel steel (bend)
Channel model
8
12
16
20
25
28
Minimum bending diameter (mm)
600
800
800
1000
1100
1700
Channel steel (inside bend)
Channel model
8
12
16
20
25
28
Minimum bending diameter (mm)
700
900
1000
1150
1600
1700
Flat steel(flat bend)
The largest cross-section (mm)
100×18
150×25
180×25
200×30
220×40
250×40
Minimum bending diameter (mm)
600
700
800
900
1000
1200
Flat steel(erect bend)
The largest cross-section (mm)
50×12
75×16
90×20
100×25
110×40
120×40
Minimum bending diameter (mm)
500
760
800
1000
1100
1300
Round pipe bend
The largest cross-section (mm)
42×4
76×4.5
89×5
89×8
114×5
159×5
Minimum bending diameter (mm)
500
750
900
900
1200
2000
Round steel
The largest cross-section (mm)
38
52
62
75
85
90
Minimum bending diameter (mm)
450
600
600
800
1000
1100
Square pipe
The largest cross-section (mm)
45×3
60×4
70×4
80×6
90×8
100×10
Minimum bending diameter (mm)
750
900
1000
1200
1600
2000

Technical parameters
Model
140
180
260
320
400
500
Flexural modulus of the largest cross-section profiles
140
180
260
320
400
500
Coil velocity (m / min)
5
4
Profiles yield strength (mpa)
△S=250
Angle steel(inside bend)
The largest cross-section (mm)
140×16
150×16
160×16
180×14
200×18
200×20
Minimum bending diameter (mm)
2400
2600
2600
3600
3600
4000
Minimum cross-section (mm)
50×5
50×6
60×6
70×6
75×6
85×6
Minimum bending diameter (mm)
1000
1200
1200
1500
1400
1600
Angle steel(bend)

The largest cross-section (mm)
150×16
160×16
180×14
200×18
200×24
250×25
Minimum bending diameter (mm)
2200
2000
2500
3600
3600
4000
Minimum cross-section (mm)
50×5
50×6
60×6
70×6
75×6
85×6
Minimum bending diameter (mm)
800
1000
1000
1300
1500
1600
Channel steel(bend)
Channel model
30
32
36
40
45
50
Minimum bending diameter (mm)
1200
1500
1800
2000
2000
2400
Channel steele(inside bend)
Channel model
30
32
36
40
45
50
Minimum bending diameter (mm)
1700
1800
1800
2000
2000
2400
Flat steel(flat bend)
The largest cross-section (mm)
280×50
300×50
330×50
360×60
400×75
500×76
Minimum bending diameter (mm)
1300
1500
1900
2000
2400
2400
Flat steel(erect bend)
The largest cross-section (mm)
150×40
180×30
190×40
190×50
200×50
200×60
Minimum bending diameter (mm)
1500
2000
2000
2400
2200
2500
Round pipe bend
The largest cross-section (mm)
168×6
168×8
219×8
245×8
273×8
323×10
Minimum bending diameter (mm)
2000
2000
3500
3000
3500
4200
Round steel bend
The largest cross-section (mm)
100
110
120
135
150
160
Minimum bending diameter (mm)
1200
1300
1350
1800
2000
2000
Square pipe bend
The largest cross-section (mm)
125×10
140×10
150×10
165×10
180×12
200×12
Minimum bending diameter (mm)
2500
3000
3000
3500
3500
5000
