This type of machine are designed for drilling,counterboring,spot-facing and tapping(except HDB25) small or middle-sized components with max. diameter 25mm.They are suitable for single piece,small batch or mass batch production in machining or reprair workshops.
|
Parameters |
Model |
HDB25 |
DB25 |
DB25-1 |
|
Max. dirlling capacity(mm) |
25 |
25 |
25 |
|
Max. tapping capacity |
- |
20 |
20 |
|
Distance from axis of spindle to generating line of column(mm) |
240 |
240 |
240 |
|
Max. distance from spindle nose to working surface of works table(mm) |
540 |
520 |
520 |
|
Max. distance from spindle nose to working surface of base plate(mm) |
- |
- |
- |
|
Max. travel of spindle(mm) |
110 |
135 |
135 |
|
Max. travel of work table support arm(mm) |
- |
- |
- |
|
Swivel angle of spindle box, worktable |
- |
- |
- |
|
Effective working area of worktable(mm) |
364×320 |
364×320 |
364×320 |
|
Spindle bore taper (Morse) |
MT3 |
MT3 |
MT3 |
|
Spindle Speed steps |
12 |
12 |
12 |
|
Spindle speed (rpm) |
125~2880 |
80~2880 |
80~2880 |
|
Spindle feed steps |
- |
- |
3 |
|
Spindle feed range (mm/r) |
- |
- |
0.12~0.32 |
|
Spindle feed method |
manual |
manual |
mechanical |
|
Motor
|
Power (KW) |
1/1.3/1.7 |
0.85/1.1 |
0.85/1.1 |
|
Voltage (V) |
220,380,420 |
220,380,420 |
220,380,420 |
|
Overal dimensions (LxWxH) |
490×630×1060 |
475×630×1090 |
475×630×1090 |
|
Net weight / Gross weight (kg) |
185/230 |
195/240 |
205/250 |
|
Package (LxWxH) (mm) |
900×600×1150 |
900×600×1150 |
900×600×1150 |
|
20″ Container loading (sets) |
34 |
34 |
34 |
Notice：

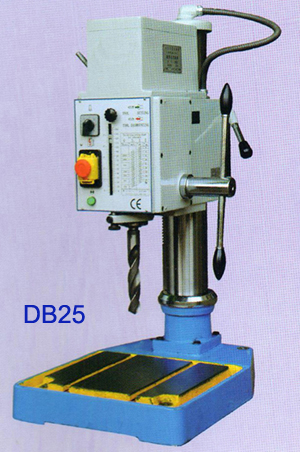

*DB25 and DB25-1 are new-designed bench drilling machine which have been developed according to customer’s requirement. DB25-1 is equipped with power-feed mechanism.
*The pictures and parameters giving here are just for reference,the manufacturer reserve the right to modify without prior notice. |
