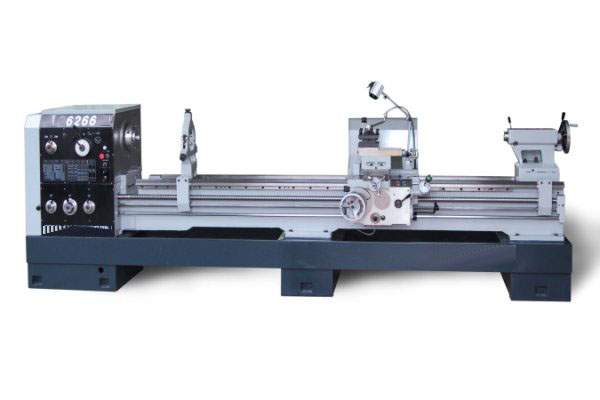

Model |
LBK6250 LBK6266 LBK6280 |
|
CAPACITIES |
Max.swing over bed |
Φ500mm |
Φ660mm |
Φ800mm |
|
Max.swing over Cross side |
Φ300mm |
Φ420mm |
Φ560mm |
|
Center distance |
1000mm(40″) 1500mm(600″) 2000mm(80″) 3000mm(118″) |
|
Max.swing over gap |
Φ710(28″) |
Φ870(34″) |
Φ1010(40″) |
|
Effective length of gap |
230mm(9″) |
|
Bed width |
405mm |
|
HEADSTOCK |
Spindle hole |
:Φ105mm |
|
Spindle nose |
D8 |
|
Spindle taper |
113mm 1:20 |
|
Spindle speeds(Number) |
36~1600r.p.m(12steps) 30~1400r.p.m(12steps) |
|
FEEDS |
Metric threads range(Kinds) |
1~14mm/22kinds |
|
Inch threads range(Kinds) |
28~2T.P.L/26kinds |
|
Moudle threads range(Kinds) |
0.5~7mm/18kinds |
|
Diametral threads range(Kinds) |
56~4 D.P/24kinds |
|
Longitudinal feeds range |
0.063-2.52(0.023″-0.937″) |
|
Cross feeds range |
0.027-1.07(0.011″-0.404″) |
|
Leadscrew size:Diameter pitch |
Φ40mm/12mm 12.7mm |
|
CARRIACGE |
Cross side travel |
360mm(14-3/16″) |
|
Compound rest travel |
145mm(5-3/4″) |
|
Cross-section size of toolshank |
25*25mm(1″*1″) |
|
TAILSTOCK |
Taper of tailstock sleeve |
M.T.NO.5 |
|
Diameter of tailstock sleeve |
Φ75mm(2-61/64″) |
|
Travel of tailstock sleeve |
150mm(5-29/32″) |
|
MOTOR |
Main drive motor |
5.5kw/7.5kw |
|
PACKING SIZE(L*W*H) |
|
|
Center distance: 1500mm |
3000*1150*1800mm |
|
|
2000mm |
3500*1150*1800mm |
|
|
3000mm |
4500*1150*1800mm |
|
|
|
|
|
Net weight/Gross Weight(kgs) |
|
|
Center distance: 1500mm |
3150/3800kgs |
3500/4150kgs |
3650/4300kgs |
|
|
2000mm |
3400/4100kgs |
4000/4700kgs |
4200/4900kgs |
|
|
3000mm |
|
4500/5250kgs |
4750/4820kgs |
|
|
STANDARD ACCESSORIES |
OPTIONAL ACCESSORIES |
|
1.3-jaw chunck |
1.Steady rest 5.Live center |
|
2.Driving plate |
2.Follower rest 6.Quick change toolpost |
|
3.Center¢er sleeve |
3.4-jaw chuck 7.Taper copy ruller |
|
4.Wrenches |
4.Face plate 8.Thread dial |
|
5.Oil gun 6.Operation manual |
|
|
|
|
