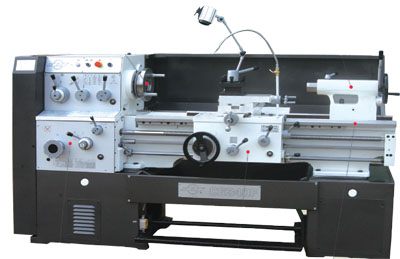

LG Lathe (52mm spindle hole)
All-geared feeding box well sealed with no leakage
Guideways ground to ensure high accuracy
Gears in headstock precisely ground to reduce noise.
Kinds of threads
Electricsystem is reliable and safe
Electromagnetic brake can be amounted when neded and color at user's option.
|
Specification |
Model |
LG61/2 36 |
LG61/2 40 |
LG61/2 50 |
|
CAPACITY |
Max. swing over bed |
360 |
400 |
500 |
|
Max. swing over cross slide |
190 |
230 |
330 |
|
Max. swing over gap |
520 |
560 |
660 |
|
Center distance |
750 1000 1500mm |
|
Bed width |
360mm |
|
SPINDLE |
Spindle hole |
52mm |
|
Spindle nose |
C6 |
|
Spindle taper |
MT6 |
|
Spindle speeds (Number) |
16-1600rpm (12 Steps) |
|
FEEDS |
Metric threads range (Kinds) |
0.25-7mm (17 Kinds) |
|
Inch threads range (Kinds) |
5-144/inch (30 Kinds) |
|
Moudle threads range (Kinds) |
0.25-3.5 m (12 Kings) |
|
Diametral threads range (Kinds) |
10-288D.P(30 Kings) |
|
CARRIAGE |
Cross slide travel |
180mm |
222mm |
|
Compound rest travel |
95mm |
|
Cross-section size of toolshank |
20*20mm2 |
|
TAILSTOCK |
Taper of tailstock sleeve |
MT4 |
|
Dia. of tailstock sleeve |
65mm |
|
Travel of tailstock sleeve |
140mm |
|
Main motor power |
4KW |
5.5KW |
|
PACKING SIZE(L*W*H) |
|
Center distance |
750mm |
2220*1150*1590mm |
|
1000mm |
2470*1150*1590mm |
|
150mm |
2970*1150*1590mm |
|
Net Weight/Gross Weight (kgs) |
|
Center distance |
750mm |
1350/2000 |
1400/2050 |
1500/2150 |
|
1000mm |
1450/2100 |
1500/2150 |
1600/2250 |
|
1500mm |
1600/2250 |
1650/2300 |
1750/2400 | |
