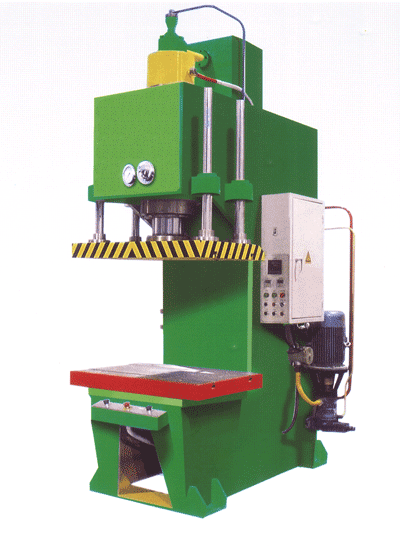

This series Hydraulic Press is computer-optimized vertical C-frame structure with high rigidity.It is equipped with slide direction guide to promote machine accuracy.It have independent hydraulic and electrical control system,centralized button control.It can fixed stroke forming process and fixed pressure forming process.
It is widly used for: 1.drawing ,forming and press for small metal sheet;2.straightening and press fitting process for shaft and sleeve parts;3.press forming process for non-metal materials,plastic products and powder products.
|
Parameters |
Unit |
THP30
-6.3 |
THP30
-10 |
THP30
-16 |
THP30
-25 |
THP30
-40 |
THP30
-63 |
THP30
-100 |
THP30
-160 |
THP30
-200 |
THP30
-315 |
THP30
-400 |
|
Rated Pressure |
kn |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
1600 |
2000 |
3150 |
4000 |
|
Max.Hydraulic Pressure |
Mpa |
12.5 |
12.5 |
20 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Stroke of Slide |
mm |
250 |
250 |
400 |
400 |
400 |
500 |
600 |
600 |
700 |
700 |
700 |
|
Daylight |
mm |
400 |
400 |
500 |
630 |
630 |
750 |
800 |
900 |
900 |
1100 |
1100 |
|
Throat Depth |
mm |
200 |
200 |
250 |
350 |
350 |
320 |
400 |
420 |
450 |
800 |
850 |
|
Speed of Slide |
Descent |
mm/s |
|
|
70 |
80 |
75 |
80 |
100 |
80 |
100 |
80 |
100 |
|
Pressing |
mm/s |
18-20 |
20-22 |
18-20 |
18-20 |
18-20 |
18-20 |
10-12 |
10-12 |
8-10 |
8-10 |
8-10 |
|
Return |
mm/s |
55 |
50 |
70 |
75 |
80 |
80 |
100 |
70 |
50 |
60 |
60 |
|
Table Area |
L-R |
mm |
440 |
440 |
500 |
580 |
700 |
710 |
800 |
900 |
900 |
1500 |
2000 |
|
F-B |
mm |
380 |
380 |
450 |
570 |
570 |
600 |
700 |
800 |
900 |
1500 |
1000 |
|
Table Height above Floor |
mm |
700 |
700 |
710 |
710 |
710 |
810 |
800 |
900 |
900 |
1400 |
1450 |
|
Dimensions of Dropping Hole |
mm |
|
|
φ150 |
φ100 |
φ100 |
φ100 |
|
|
|
|
|
|
Motor Power |
kw |
3 |
3 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
15 |
22 |
22 |
Notice:
* The pictures and parameters giving here are just for reference,the manufacturer reserve the right fo modify without prior notic.
|
