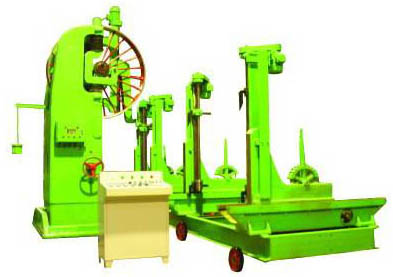

This machine is used to rip cutting the crude wood. It is composed of band saw and automatic feed of carriage. It is good for all kinds of large and middle wood factory.



Model	S1500xC1800	S1500xC1500	S1200xC1500	S1200xC1200	S900xC900	S600xC700
Diameter and width of saw wheel (mm)	1500x200	1500x200	1270x160	1270x160	1250x140	1070x115
Saw wheel’s rotating speed    (r/min)	520	520	750	750	750	800
Center distance between two saw wheels (mm)	3000	3000	2500	2500	2200	1820
Max sawing diameter of  crude wood (mm)	1500	1500	1200	1200	900	600
Max sawing length of crude wood (mm)	8000	8000	8000	8000	8000	8000
Max diameter of wood put on the carriage (mm)	1800	1500	1500	1200	900	700
Main motor (kw)	55-75	55-75	45-55	45-55	37	30
