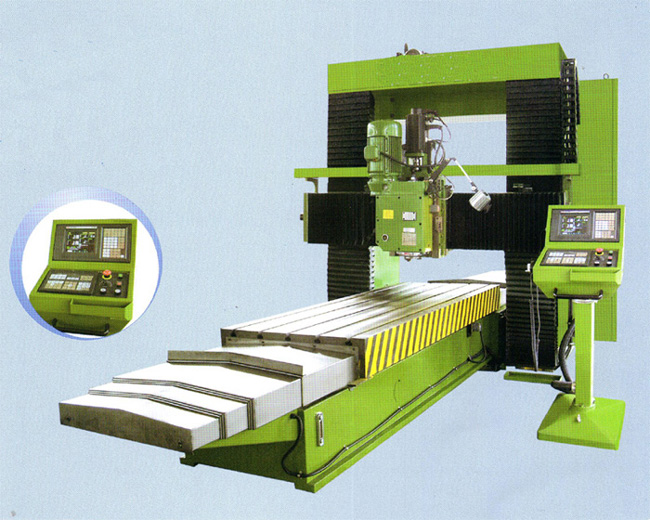

This machine is suitableto processing on the plane,bevel,groove and so on by various milling cutters.
It can process workpiece in high speed under heavy load for the powerful and rigid specially.
|
Parameters |
Unit |
ZPMC-1508 |
ZPMC-2012 |
ZPMC-2512 |
ZPMC-3012 |
ZPMC-3016 |
ZPMC-3020 |
|
Working Surface of Table |
mm |
1500×800 |
2000×1000 |
2500×1000 |
3000×1000 |
3000×1200 |
3000×1600 |
|
Max. Length of Workpiece |
mm |
1500 |
2000 |
2500 |
3000 |
3000 |
3000 |
|
Max. height of Workpiece |
mm |
750 |
1000 |
1000 |
1000 |
1200 |
1200 |
|
Distance between Two Column |
mm |
900 |
1250 |
1250 |
1250 |
1600 |
2100 |
|
Table Feed Servo Motor |
kw |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
7.5 |
|
Crossrail Lift Motor |
kw |
3 |
3 |
3 |
3 |
3 |
3 |
|
Cross(L & R) Servo Motor |
kw |
3 |
3 |
3 |
3 |
3 |
3 |
|
Vertical/Side Milling Head Power |
kw |
7.5/5.5 |
7.5/5.5 |
7.5/5.5 |
7.5/5.5 |
7.5/5.5 |
7.5/5.5 |
|
Vertical Milling Head Lifting Servo Moto |
kw |
4.7 |
4.7 |
4.7 |
4.7 |
4.7 |
4.7 |
|
Table Speed |
mm/min |
0~4000 |
0~4000 |
0~4000 |
0~4000 |
0~4000 |
0~4000 |
|
Hydraulic Lock Moto power |
kw |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Max. workpiece weight |
kg |
5000 |
5000 |
6000 |
7000 |
10000 |
10000 |
*Standard Accessories:
1.Safe protecting cover; 2.Tools & Tools box; 3.Anchor bolt; 4.Pad iron.
*Special Accessories:
1.Light grating rule; 2.Cutter disk; 3.Press plate; 4.Arbor.
*We reserve the right to modify the parameters without prior notice. |
