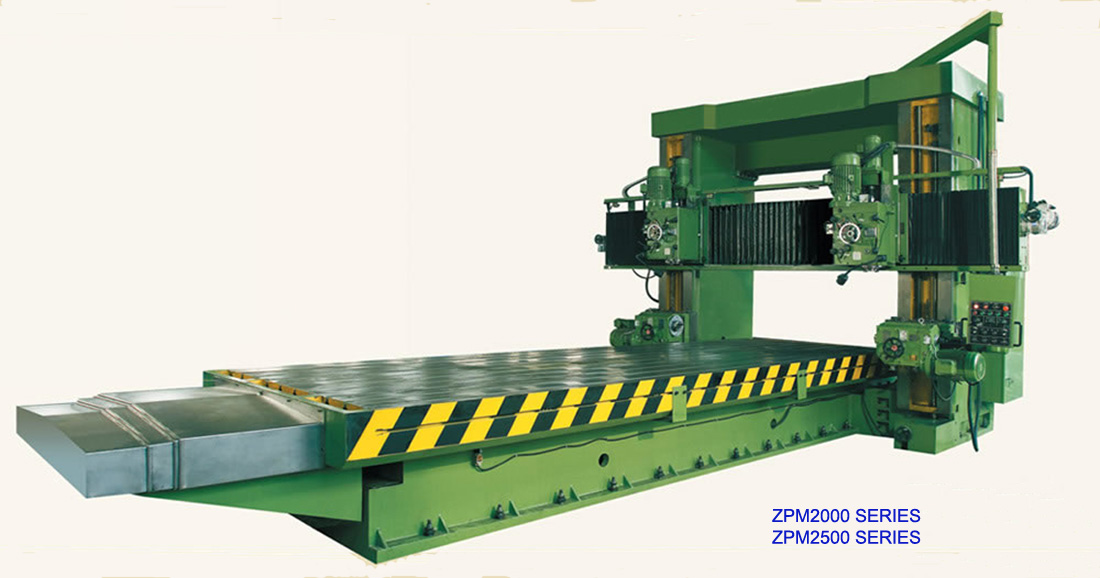

ZPM2000(S)/ZPM2500(S) SERIES

AddTime:2011/6/11 16:44:03 Hits:333

This machine is suitableto processing on the plane,bevel,groove and so on by various milling cutters.

It can process workpiece in high speed under heavy load for the powerful and rigid specially.

ZPM2000(S) Series Plano Milling machine

Parameters	Unit	ZPM2000S SERIES			ZPM2000 SERIES
Parameters	Unit	ZPM-3020S	ZPM-4020S	ZPM-6020S	ZPM-3020	ZPM-4020	ZPM-6020
Working Surface of Table	mm	3000×1600	4000×1600	6000×1600	3000×2000	4000×2000	6000×2000
Max. Length of Workpiece	mm	3000	4000	6000	3000	4000	6000
Max. height of Workpiece	mm	1200			1250
Distance between Two Column	mm	2100			2500
Milling Head Travel(up & down)	mm	-			300
Milling Head Travel(left & right)	mm	-			2800
Spindle Motor	kw	7.5			7.5
Crossrail Lift Motor	kw	3	4	4	2
Table Feed motor	kw	5.5	7.5	11	7.5	7.5	11
Table Speed	mm/min	0~3000	0~3000	CVT	0~2300
Spindle Hole Taper	No.	NT50			NT50
Max. workpiece weight	kg	13000	15000	20000	8000	12000	20000

ZPM2500(S) Series Plano Milling machine

Parameters	Unit	ZPM2500S SERIES				ZPM2500 SERIES
Parameters	Unit	ZPM-4025S	ZPM-6025S	ZPM-6030S	ZPM-8025S	ZPM-4025	ZPM-6025	ZPM-8025
Working Surface of Table	mm	4000×2000	6000×2000	6000×2500	8000×2000	4000×2500	6000×2500	8000×2500
Max. Length of Workpiece	mm	4000	6000	6000	8000	4000	6000	8000
Max. height of Workpiece	mm	1500				1750
Distance between Two Column	mm	2600	2600	3100	2600	3000
Milling Head Travel(up & down)	mm	-				300
Milling Head Travel(left & right)	mm	-				3800
Spindle Motor	kw	7.5				7.5
Crossrail Lift Motor	kw	4	5.5			2
Table Feed motor	kw	7.5	15			7.5	11	11
Table Speed	mm/min	0~3000	CVT			0~2300
Spindle Hole Taper	No.	NT50				NT50
Max. workpiece weight	kg	18000	20000	23000	25000	15000	20000	30000

*Standard Accessories:

1.Safe protecting cover; 2.Tools & Tools box; 3.Anchor bolt; 4.Pad iron.

*Special Accessories:

1.Light grating rule; 2.Cutter disk; 3.Press plate; 4.Arbor.

*CVT: Continuously Variable Transmission

*We reserve the right to modify the parameters without prior notice.
