This machine is suitable to processing on the plane,bevel,groove and so on by various milling cutters.
It can process workpiece in high speed under heavy load for the powerful and rigid specially.
|
Parameters |
Unit |
ZPM1250S SERIES |
ZPM1250 SERIES |
|
ZPM-2012S |
ZPM-2512S |
ZPM-3012S |
ZPM-2512 |
ZPM-3012 |
ZPM-3512 |
ZPM-4012 |
|
Working Surface of Table |
mm |
2000×1000 |
2500×1000 |
3000×1000 |
2500×1250 |
3000×1250 |
3500×1250 |
4000×1250 |
|
Max. Length of Workpiece |
mm |
2000 |
2500 |
3000 |
2500 |
3000 |
3500 |
4000 |
|
Max. height of Workpiece |
mm |
1000 |
1000 |
|
Distance between Two Column |
mm |
1250 |
1600 |
|
Milling Head Travel(up & down) |
mm |
- |
300 |
|
Milling Head Travel(left & right) |
mm |
- |
1800 |
|
Spindle Motor |
kw |
7.5 |
7.5 |
|
Crossrail Lift Motor |
kw |
3 |
1.5 |
|
Table Feed motor |
kw |
3 |
5.5 |
|
Table Speed |
mm/min |
0~2300 |
0~2300 |
|
Spindle Hole Taper |
No. |
NT50 |
NT50 |
|
Max. workpiece weight |
kg |
5000 |
6000 |
7000 |
8000 |
9000 |
10000 |
12000 |

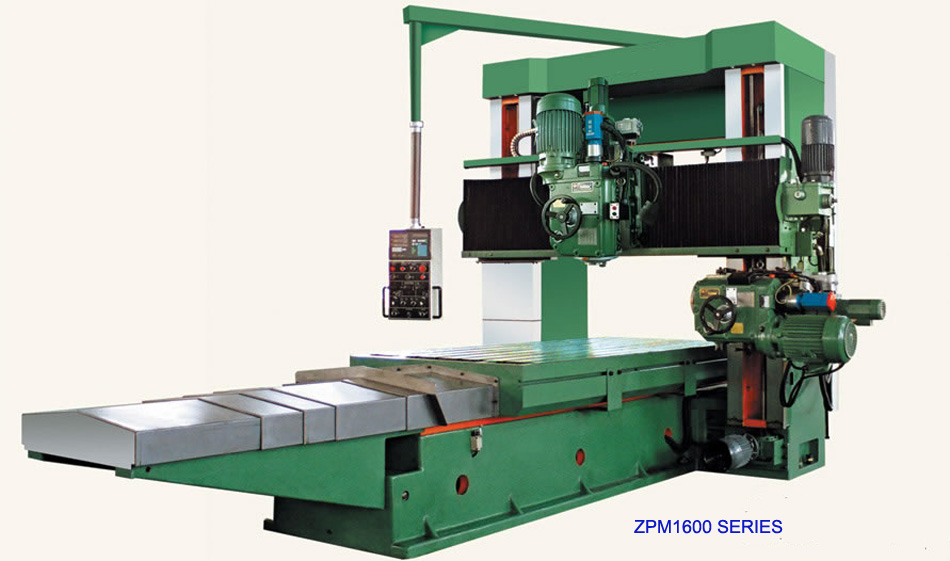

ZPM1600(S) Series Plano Milling machine
|
Parameters |
Unit |
ZPM1600S SERIES |
ZPM1600 SERIES |
|
ZPM-2016S |
ZPM-2516S |
ZPM-3016S |
ZPM-4016S |
ZPM-3016 |
ZPM-3516 |
ZPM-4016 |
ZPM-6016 |
|
Working Surface of Table |
mm |
2000×1200 |
2500×1200 |
3000×1200 |
4000×1200 |
3000×1600 |
3500×1600 |
4000×1600 |
6000×1600 |
|
Max. Length of Workpiece |
mm |
2000 |
2500 |
3000 |
4000 |
3000 |
3500 |
4000 |
6000 |
|
Max. height of Workpiece |
mm |
1000 |
1000 |
|
Distance between Two Column |
mm |
1600 |
2000 |
|
Milling Head Travel(up & down) |
mm |
- |
300 |
|
Milling Head Travel(left & right) |
mm |
- |
2200 |
|
Spindle Motor |
kw |
7.5 |
7.5 |
|
Crossrail Lift Motor |
kw |
3 |
3 |
3 |
4 |
2 |
|
Table Feed motor |
kw |
4 |
4 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Table Speed |
mm/min |
0~3000 |
0~2300 |
|
Spindle Hole Taper |
No. |
NT50 |
NT50 |
|
Max. workpiece weight |
kg |
7000 |
9000 |
11000 |
13000 |
8000 |
9000 |
10000 |
18000 |
*Standard Accessories:
1.Safe protecting cover; 2.Tools & Tools box; 3.Anchor bolt; 4.Pad iron.
*Special Accessories:
1.Light grating rule; 2.Cutter disk; 3.Press plate; 4.Arbor.
*We reserve the right to modify the parameters without prior notice. |
