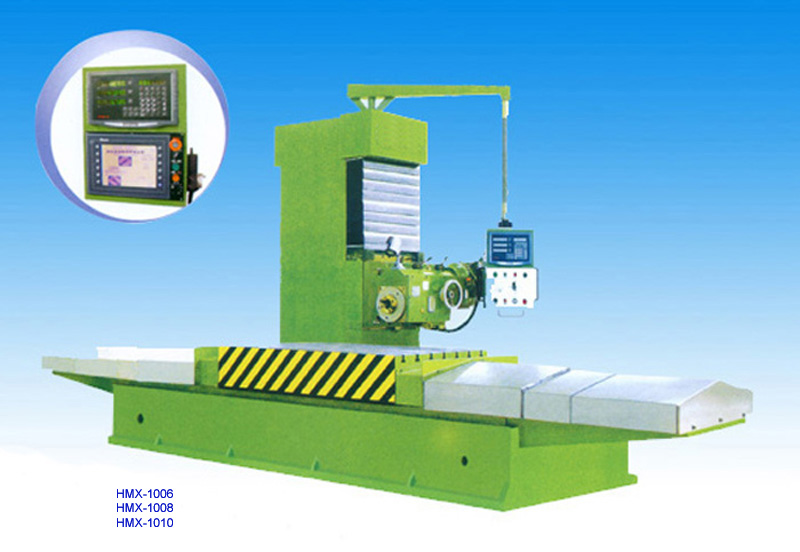

This machine is suitableto processing on the plane,bevel,groove and so on by various milling cutters.It can process workpiece in high speed under heavy load for the powerful and rigid specially.
|
Parameters |
Unit |
HMX SERIES |
HMZ SERIES |
|
HMX-1006 |
HMX-1008 |
HMX-1010 |
HMZ-1006 |
HMZ-2008 |
|
Working Surface of Table |
mm |
1500×800 |
2000×800 |
2500×800 |
1600×600 |
2000×800 |
|
Max. Length of Workpiece |
mm |
1500 |
2000 |
2500 |
1600 |
1600 |
|
Max. height of Workpiece |
mm |
800 |
1000 |
|
Milling Head Travel(front to back) |
mm |
300 |
200 |
|
Table Feed |
mm/min |
0~2500(stepless) |
stepless |
|
Milling Head Move (up & down) |
mm/min |
0~2500(stepless) |
0~1000(stepless) |
|
Milling Head Move(front to back) |
mm/min |
0~2500(stepless),(for select) |
0~360(stepless),(for select) |
|
Spindle Motor |
kw |
7.5 |
5.5 |
|
Spindle Rotating Speed |
r/min |
100-685 |
- |
|
Spindle Hole Taper |
No. |
NT50 |
NT50 |
|
Max. workpiece weight |
kg |
4000 |
5000 |
6000 |
- |
Special accessories:
1、Light grating rule; 2、Right angle milling head; 3、pneumatic lock knife device；
4、cutter disk； 5、press plate.
|
